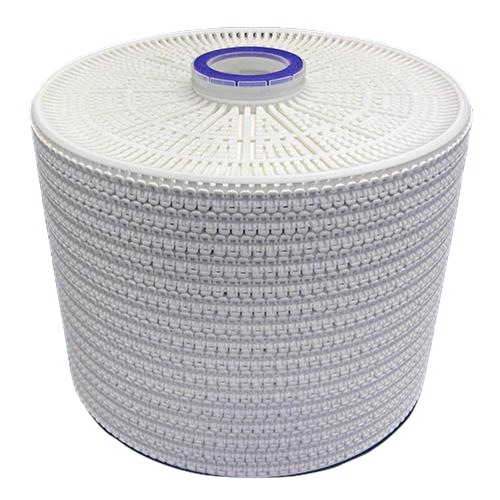

SUPRAdisc™ II depth filter modules

Next generation in depth filter module technology for bioprocess clarification applications.

变体 Array 参考编号: 40018391

变体 Array 参考编号: 40019412

变体 Array 参考编号: 40017151

变体 Array 参考编号: 40019413

变体 Array 参考编号: 40018802

变体 Array 参考编号: 40017152

SKU： N/A 分类： , ,

¥0.00

货号 规格描述 价格 数量 操作
7005229 Bio-Series，BIO 10，1.8 m²，0.2 - 0.4 µm，SUPRAdisc II module, Bio-Series, BIO 10 media, 1.8 m² EFA, Double O-ring gasket ¥5,643.22
7007240 Bio-Series，BIO 10，5 m²，0.2 - 0.4 µm，SUPRAdisc II module, Bio-Series, BIO 10 media, 5 m² EFA, Double O-ring gasket ¥13,221.00
7007241 Bio-Series，BIO 10，5 m²，0.2 - 0.4 µm，SUPRAdisc II module, Bio-Series, BIO 10 media, 5 m² EFA, Flat gasket ¥3,865.73
7007242 Bio-Series，BIO 20，5 m²，0.4 - 1.0 µm，SUPRAdisc II module, Bio-Series, BIO 20 media, 5 m² EFA, Double O-ring gasket ¥13,221.00
7005294 Bio-Series，BIO 10，1.8 m²，0.2 - 0.4 µm，SUPRAdisc II module, Bio-Series, BIO 10 media, 1.8 m² EFA, Flat gasket ¥1,952.64
7007243 Bio-Series，BIO 20，5 m²，0.4 - 1.0 µm，SUPRAdisc II module, Bio-Series, BIO 20 media, 5 m² EFA, Flat gasket ¥3,658.94

产品详情

The SUPRAdisc™ II module design combines the filtration performance of Seitz™ media and the structural robustness of interlocking dual drainage plates. The dual drainage plate design of the SUPRAdisc™ II depth filter module optimizes the flow distribution by providing unobstructed process flow.
  • Improved structural robustness due to dual drainage plates.
  • Optimized flow distribution upstream and downstream of the filter sheets maximizes filter utilization.
  • Filter media is less susceptible to blinding from media-to-media contact within the module assembly.
  • Fully supported filter sheets inhibit the rupturing of filter media frequently associated with back pressure.
  • Highest packing density minimizes hold up volume.
  • Steam sterilizable at 125°C for 30 minutes.
  • All plastic components used in construction meet the specifications for the biological test listed in the current version of the USP Class VI 121°C.
  • Fully traceable by serial number.



SUPRAdisc™ module filter media

All pharmaceutical grade depth filter sheets can readily be incorporated into SUPRAdisc™ II modules.

Seitz™ P-series

Seitz™ P-series depth filter sheets were specifically developed for the strict requirements in biotechnological and pharmaceutical industries. Manufactured with stringent in-process control methods assures consistent filtration quality, a very high purity of filter medium, and alignment with the requirements of the pharmaceutical industry.

Code Filter media Retention rating (µm)​ Typical ash content (%)​ Endotoxin level (EU/mL)​
PEKX EKX-P​ 0.05 – 0.2 52 < 0.06
PEKS EKS-P​ 0.1 – 0.3​ 58 < 0.06
PEKM EKM-P​ 0.2 – 0.5​ 51 < 0.06
PEK1 SUPRA EK 1 P​ 0.2 – 0.5​ 47 < 0.06
P050 KS 50 P 0.4 – 0.8 46 < 0.06
P100 K 100 P​ 1.0 – 3.0​ 46 < 0.06
P080 SUPRA 80 P​ 1.0 – 3.0​ 49 < 0.06
V100 V100P 2.0 – 4.0​ 52 < 0.06
P200 K 200 3.0 – 6.0 46 < 0.06
P250 K 250​ 4.0 – 9.0 46 < 0.06
P700 K 700​ 6.0 – 15.0​ 46 < 0.06
P900 K 900 P 8.0 – 20.0 46 < 0.06
P1500 T1500 P​ 11.0 – 30.0​ 33 < 0.06

Seitz™ Bio-series

Seitz™ Bio-series depth filter sheets are specially developed from highly purified natural and modified cellulose fibers and contain no inorganic materials such as diatomaceous earth (DE), perlite or glass fibers. The lack of these inorganic substances significantly reduces the levels of ash and heavy metal extractables.

Code Filter media Retention rating (µm)​ Typical ash content (%)​ Endotoxin level (EU/mL)​
B010 BIO 10​ 0.2 – 0.4​ < 1​ < 0.06
B020 BIO 20 0.4 – 1.0​ < 1​ < 0.06

Seitz™ HP-series

Seitz™ HP-series depth filter sheets are comprised of two distinct layers of Seitz™ P-series depth filter sheets; a coarser layer upstream followed by a finer layer downstream. These performance-enhanced depth filter sheets have been designed for use in low viability, high solids containing applications. As small shifts in process conditions can cause dramatic differences in filtration requirements, the flexibility of combining any combination of P-series media in an HP format allows for improved process optimization.

High quality and FDA conformity

The filter sheets meet the specifications set forth in the US Code of Federal Regulations Title 21, parts 177.2260 e, f, g, h, i, j, k, l. The materials for all plastic components are listed in US Code of Federal Regulations Title 21, part 177.1520.

Filter selection

The SUPRAdisc™ II module product range can be found in the product table below. You can use the filters at the top of each column to narrow your search based on the following criteria.

  • Retention rate
  • Filtration area
  • Depth filter type

Please look at the brochure to review all possible filter options that you may require.

We are on-hand to provide support with your filter selection for your process.
